The first time most people notice a tall building moving, it’s usually described as alarming — a subtle sway felt on a high floor during strong wind, or a swinging light fixture that seems to suggest something is wrong. In reality, that motion is not a sign of failure. It’s the structure working exactly as intended.
Skyscrapers are engineered to move. A completely rigid tall building, one that resisted wind with zero deflection, would actually be far more dangerous than one that sways predictably within calculated limits — rigidity concentrates stress rather than dissipating it, and a structure with no flexibility has nowhere for wind energy to go except directly into the material itself. This guide covers why tall buildings sway, how much movement is actually normal, and the engineering techniques that keep that movement within safe, comfortable limits.
Why Flexibility Is a Design Goal, Not a Flaw
Wind exerts continuous, variable pressure on a tall building’s exterior surface, and that pressure has to go somewhere. A structure with some flexibility absorbs and dissipates this energy through controlled movement, distributing stress across the structure over time rather than concentrating it at any single point.
A perfectly rigid structure, by contrast, would resist that pressure without yielding at all — which sounds stronger in principle but actually creates dangerous stress concentrations at specific points, particularly at the base and at any abrupt changes in the structure’s geometry. Flexibility isn’t a compromise engineers accept reluctantly. It’s a deliberate design strategy that makes a tall structure genuinely safer under wind loading than a rigid alternative would be.
How Wind Actually Loads a Tall Building

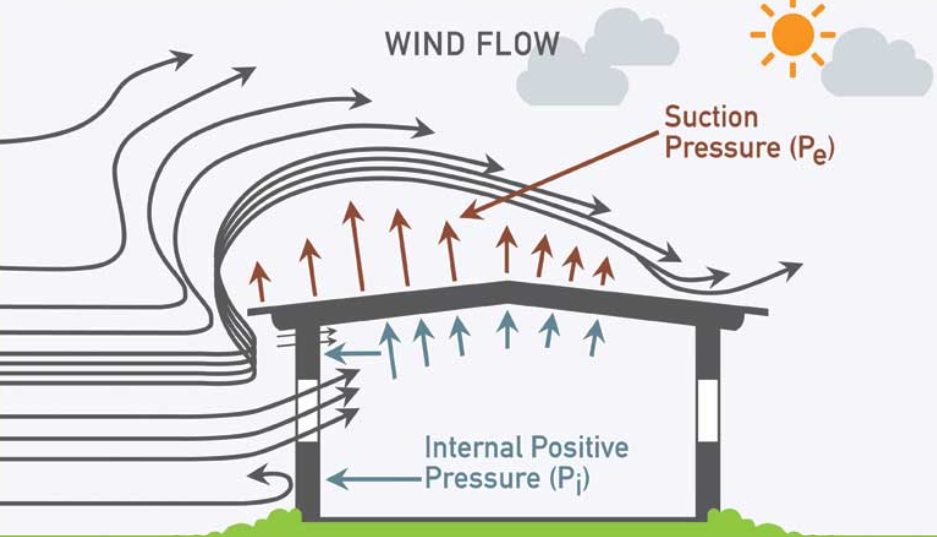

Wind doesn’t apply a single, constant force. It applies static pressure that increases with height, since wind speed itself increases with height above the ground. It also applies dynamic effects — gusting and turbulence that create rapidly varying loads rather than a steady push. And it generates vortex shedding, a phenomenon where wind flowing around a tall building’s sides creates alternating pressure differences that can induce oscillation, sometimes at a frequency that interacts unfavorably with the building’s own natural sway if the geometry isn’t accounted for during design.
Tall, slender buildings are more susceptible to wind-induced motion than shorter, wider ones, which is exactly why the taller a structure gets, the more central these wind effects become to its overall structural design, rather than a secondary consideration checked after the fact. This is also why some buildings become known for specific sway characteristics that go beyond pure engineering necessity — a structure’s height-to-width ratio, once past a certain point, starts to make wind sensitivity a defining design constraint rather than a secondary check performed after the architectural form is already settled.
The Building’s Own Dynamic Properties
How much a building actually sways under a given wind load depends heavily on its own structural characteristics, not just the wind itself.
Every structure has a natural frequency — the rate at which it will oscillate if disturbed and left to move freely. Damping describes how quickly that oscillation decays once started; a building with more inherent damping settles back to rest faster than one with less. Stiffness, largely determined by the structural system, resists deformation and directly affects how much the building sways under a given wind pressure. And mass distribution throughout the height of the structure influences how it responds dynamically, since mass concentrated unevenly changes how vibration propagates through the building.
Getting these dynamic properties right during design is what determines whether a building’s wind-induced motion stays within comfortable, safe limits or becomes a genuine serviceability problem, even without any structural safety concern.
Structural Systems That Manage Wind-Induced Sway
Several structural systems specifically help tall buildings manage lateral wind loads, and the choice between them depends heavily on a building’s height, shape, and the specific wind conditions of its location.
Shear wall systems use rigid vertical walls to resist lateral forces, providing significant stiffness in taller buildings. Braced frame systems use diagonal bracing to transfer lateral loads efficiently down through the structure. Outrigger systems connect a building’s central core to its perimeter columns through stiff horizontal elements, dramatically increasing the effective stiffness of the whole structure against overturning. Outrigger systems in particular have become common in very tall buildings specifically because they allow a comparatively slender central core to achieve stiffness that would otherwise require a much larger, less space-efficient core on its own. Tube systems, where the building’s exterior itself acts as a rigid tube resisting lateral loads, became one of the defining structural innovations that made very tall buildings genuinely practical.
Tuned Mass Dampers
One of the more visible and widely discussed technologies for managing skyscraper sway is the tuned mass damper — a large mass, sometimes suspended, sometimes mounted on a sliding or rolling mechanism, installed near the top of a building.
The damper is tuned to oscillate out of phase with the building’s own natural sway, counteracting the building’s motion and reducing the amplitude of its movement. Taipei 101 uses one of the most famous examples — a roughly 660-ton steel sphere suspended near the top of the tower, visible to visitors, that measurably reduces the building’s sway during typhoons and strong wind events. Not every tall building needs a tuned mass damper; whether one is warranted depends on the structure’s height, slenderness, and site-specific wind conditions, evaluated during design rather than added reflexively to every tall project. Not all dampers are suspended pendulum-style masses like Taipei 101’s — some designs use a sliding mass on a curved track, others use a liquid-filled tank where the fluid’s sloshing motion provides the counteracting effect, and the choice between designs depends on the specific building’s dynamic characteristics and the space available near the top of the structure.
Aerodynamic Shaping
Beyond structural systems and dampers, a building’s actual shape plays a significant role in how much wind force it experiences in the first place.
Tapering a building’s form as it rises, rounding sharp corners, and incorporating strategically placed openings can all reduce wind loading and disrupt the vortex shedding patterns that contribute to oscillation. Some of the most recognizable supertall buildings incorporate large through-building openings specifically for this purpose, allowing wind to pass through the structure at certain levels rather than building up pressure against a fully solid form — a deliberate architectural feature that’s really a wind-engineering decision wearing an architectural face. Some of the most distinctive silhouettes among modern skyscrapers exist not purely for aesthetic reasons, but because their shape was specifically engineered to manage how wind interacts with the structure — form and structural performance working together rather than being separate considerations.
Measuring and Predicting Wind Behavior Before Construction
Long before a tall structure’s design is finalized, its actual wind behavior is tested and refined using tools specifically built for this purpose.

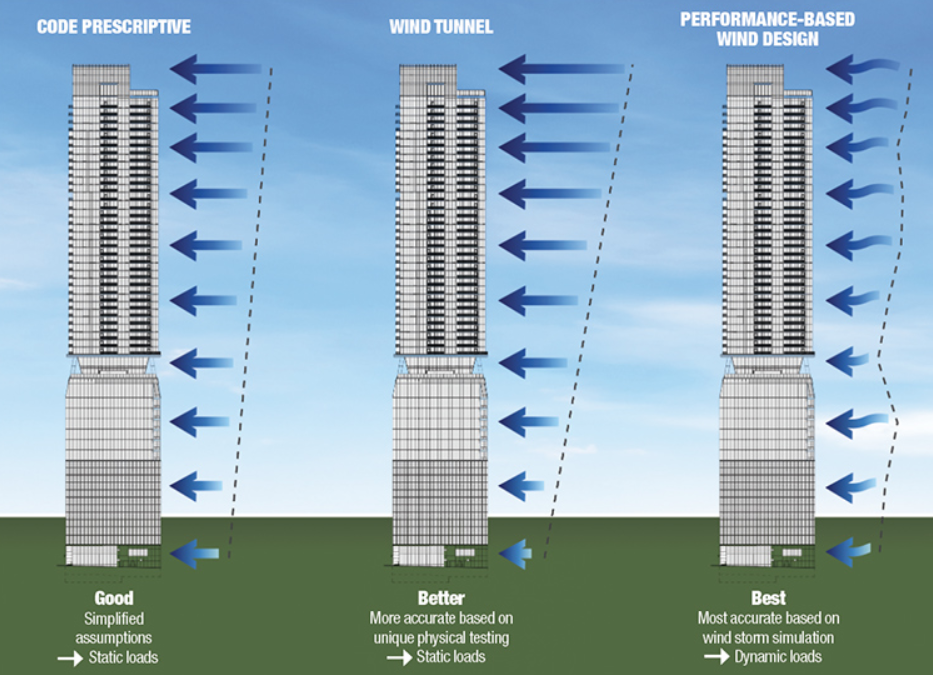

Wind tunnel testing remains one of the most reliable methods — a scaled physical model of the building, often including surrounding structures that affect local wind patterns, is subjected to simulated wind conditions while instruments measure pressure, force, and induced motion. Computational Fluid Dynamics complements this physical testing with digital simulation, modeling how air flows around a proposed structure’s geometry under a range of wind speeds and directions. Neither approach fully replaces the other; wind tunnel testing captures physical effects that are difficult to simulate perfectly, while computational modeling allows engineers to test many more design variations quickly and cheaply before committing to a final shape for physical testing.
Site-specific wind data — historical wind speed and direction records for the exact location, not generic regional averages — feeds directly into both approaches. A building’s actual wind exposure depends heavily on surrounding terrain and neighboring structures, which is why identical building designs in different locations can face meaningfully different wind engineering requirements.
The Role of Surrounding Buildings
A tall building doesn’t experience wind in isolation from its urban context, and this interaction can work in either direction.
Neighboring structures can shield a building from certain wind directions, reducing the loads it actually experiences compared to an isolated calculation. They can also create channeling effects, accelerating wind through gaps between buildings in ways that increase local wind speeds beyond what open-terrain data would suggest. This is part of why wind tunnel models frequently include a representation of the surrounding urban fabric, not just the building being designed — evaluating a tall structure’s wind performance in isolation from its actual neighbors can produce a meaningfully inaccurate picture of the conditions it will really face once built.
How Much Sway Is Actually Normal?
Occupants sometimes assume any perceptible motion signals something has gone wrong, but tall buildings are designed to move within a calculated range that’s both structurally safe and, ideally, largely imperceptible during typical conditions.
Design codes and engineering practice define acceptable limits for lateral drift — the horizontal displacement at the top of a building relative to its height — under design wind loads, along with separate acceleration limits specifically aimed at occupant comfort rather than structural capacity. A very tall building might move a meter or more at its peak during an extreme design wind event and still be performing exactly as intended, while the same building might be imperceptible to occupants during the much more common, far less severe wind conditions it experiences on an ordinary day. The gap between “structurally fine” and “comfortable to occupy” is precisely why comfort-based acceleration limits exist as their own design criterion, separate from strength.
Field Notes from Kamil
Wind engineering for tall structures isn’t something most site engineers deal with directly on a typical project, but understanding it matters for anyone working on taller commercial structures, because the consequences of getting it wrong don’t show up as a dramatic failure — they show up as an uncomfortable building that occupants complain about for years.
What’s worth understanding from a practical standpoint is that a building passing its structural safety checks under wind load and a building that feels comfortable to occupy during wind events are two related but distinct engineering questions. A structure can be entirely safe under its design wind loads while still swaying enough, at certain floors, to cause noticeable discomfort — dizziness, unease, objects visibly swinging — well before any structural limit is approached. This is exactly why serviceability limits for motion and comfort exist as a separate design check from strength limits, and why simply confirming a structure “won’t fail” isn’t the same as confirming it will actually function well for the people using it.
A Simple Wind Design Review
For anyone involved in reviewing or coordinating a tall structure’s wind-related design, it’s worth confirming:
- Both static wind pressure and dynamic effects (gusting, vortex shedding) have been accounted for, not just a simplified static load
- The building’s natural frequency and damping characteristics have been evaluated against expected wind conditions for the site
- The chosen structural system (shear wall, braced frame, outrigger, tube) genuinely matches the building’s height and slenderness
- Whether a tuned mass damper or similar device is warranted has been assessed based on actual site wind data, not assumed by default
- Aerodynamic shape considerations have been evaluated where geometry allows for meaningful adjustment
- Occupant comfort and serviceability limits have been checked separately from structural strength limits
- Wind tunnel testing or computational modeling has used site-specific wind data and accounted for surrounding buildings, not an isolated or generic assessment
Common Misconceptions About Skyscraper Sway
- Assuming any visible or felt motion indicates a structural problem — controlled sway within design limits is expected behavior, not a sign of failure
- Treating rigidity as inherently safer than flexibility — a completely rigid tall structure concentrates stress in ways that are actually more dangerous under wind loading
- Assuming every tall building needs a tuned mass damper — the need depends on the specific structure’s height, slenderness, and site wind conditions, not a blanket rule
- Confusing structural safety with occupant comfort — a building can be fully safe under wind load while still failing to meet comfort-based serviceability limits
- Overlooking building shape as a wind-management tool — aerodynamic shaping can meaningfully reduce wind loading before any structural system is even engaged
- Evaluating wind performance without accounting for neighboring structures — surrounding buildings can shield or channel wind in ways that meaningfully change actual loading compared to an isolated assessment
Frequently Asked Questions (FAQ)
[H3] Why does wind engineering rely on both wind tunnel testing and computer simulation?
Wind tunnel testing captures physical effects that are difficult to simulate perfectly, while computational modeling allows many design variations to be tested quickly before a final shape is committed to physical testing. The two methods complement rather than replace each other.
Can nearby buildings change how much wind a tall structure actually experiences?
Yes. Neighboring structures can shield a building from certain wind directions or channel wind through gaps in ways that increase local speeds. This is why wind tunnel models typically include the surrounding urban context, not just the building being designed.
Is it dangerous if a tall building sways in the wind?
No. Controlled sway within calculated design limits is expected and intentional. It’s actually a sign the structure is dissipating wind energy safely rather than concentrating stress the way a completely rigid structure would.
How does a tuned mass damper reduce building sway?
It’s a large mass tuned to oscillate out of phase with the building’s natural sway, counteracting the building’s motion and reducing the amplitude of its movement during wind events.
Why are taller, slender buildings more affected by wind than shorter, wider ones?
Wind speed increases with height, and slender structures have less inherent resistance to lateral deflection, making both static pressure and dynamic effects like vortex shedding more significant factors in their design.
What is vortex shedding, and why does it matter for tall buildings?
Vortex shedding occurs when wind flowing around a building’s sides creates alternating pressure differences that can induce oscillation, sometimes at a frequency that interacts unfavorably with the building’s own natural sway if not accounted for in design.
Can a building be structurally safe but still uncomfortable during wind events?
Yes. Structural strength limits and occupant comfort or serviceability limits are separate design checks. A building can fully satisfy strength requirements while still swaying enough to cause noticeable discomfort at certain floors.
Does every tall building need special wind-mitigation technology like a tuned mass damper?
No. Whether a damper or similar technology is warranted depends on the building’s height, slenderness, and site-specific wind conditions, evaluated individually rather than applied as a default requirement for all tall structures.
This article is part of our complete guide to structural design — see Standards for Construction Design Against Earthquakes for the full picture.
